Jailed GUI (x11) applications

Insecure / Testing-only

Warning

See Sandboxed x11 applications for a more effective and secure way to run x11 applications.

The process to run a GUI (x11) application in a jail is very easy using AppJail. You just need to mount the socket directory. AppJail has a shortcut for this in appjail-quick(1) named x11.

However, the process is a bit different if you want to run a GUI application on linux or FreeBSD.

On FreeBSD you must set clear_tmp_X to NO to not remove the sockets and various related files before the jail starts. At least in Debian, it is not necessary to do something similar.

Another important thing is the user that will run the application. AppJail can run an application using a user other than root, but it is necessary to create one, do it in the stage build.

Makejail:

INCLUDE options/options.makejail
INCLUDE options/network.makejail
INCLUDE options/x11.makejail
INCLUDE xclock/Makejail

# See `Makejail and Initscripts`
STOP

options/options.makejail:

OPTION start
OPTION resolv_conf
OPTION tzdata
OPTION overwrite

options/network.makejail:

ARG interface
ARG ruleset

OPTION bridge=iface:${interface} xclock
OPTION dhcp=sb_xclock
OPTION mount_devfs
OPTION devfs_ruleset=${ruleset}

options/x11.makejail:

OPTION x11
OPTION copydir=files
OPTION file=/etc/rc.conf

files/etc/rc.conf:

clear_tmp_X="NO"

xclock/Makejail:

PKG xclock

CMD pw useradd -n xclock -c "Analog and digital clock for X" -d /home/xclock -s /bin/sh
CMD mkdir -p /home/xclock
CMD chown xclock:xclock /home/xclock

STAGE cmd

USER xclock
RUN xclock

The above problem can be solved by using the files or file and copydir options as you can see or by using the COPY or SYSRC commands. The first options are used because the files are copied before the jail is started with the start option.

To run the Makejail for xclock:

xhost +
appjail makejail -j xclock -- --interface jext --ruleset 10
appjail start xclock
appjail run xclock
# or
appjail run -V DISPLAY=:1 xclock

jailed xclock

For details of how to run a GUI application in a jail, we recommend JailGUIApplications.

Sandboxed x11 applications

Although the xhost + trick is a common workaround for running an x11 application, it can become a nightmare for security reasons, since /tmp/.X11-unix is shared with each jail, which means that a compromised jail could communicate with the host's X server, thus escaping the isolated environment. Of course, you can use it for testing purposes only, but even then, AppJail implements a command called appjail-x11(1) to run an x11 application securely thanks to MIT-MAGIC-COOKIE-1 authentication, so even though it shares /tmp/.X11-unix, applications inside the jail cannot communicate with other servers that are not authorized. Of course, how exactly is a jailed x11 application displayed on the screen? This is done thanks to Xephyr(1), which creates another X server, and AppJail automates access to this server.

There are some examples you can find in this repository, but let's create one to demonstrate how this command can be used.

Makejail:

# [1]
OPTION start
OPTION overwrite=force
OPTION volume=badwolf-data mountpoint:/data owner:25000 group:25000

# [2]
CMD pw useradd -n badwolf -d /data -u 25000 -s /bin/sh
CMD mkdir -p /data
CMD chown badwolf:badwolf /data

# [3]
CMD echo "exec badwolf" > /data/.ratpoisonrc
CMD chown badwolf:badwolf /data/.ratpoisonrc

# [4]
PKG badwolf dbus xauth xrandr ratpoison xorg-fonts mesa-dri mesa-libs

# [5]
SERVICE dbus enable
SERVICE dbus start
  1. Here we are only creating the Makejail that defines what our jail will be. The common options are start and overwrite=force used by appjail-quick(1), but we also specify a volume called badwolf-data so that if we want to download something, it will be kept even if we recreate the jail by calling the create.sh script again, but please note that creating a volume does not mount it, so you must also specify the fstab option. You can also specify network options, but I recommend doing so outside of the Makejail, as this will allow you to customize them more easily and efficiently, as we do in create.sh.
  2. To add another layer of security, we will run our x11 application as a user without privileges, so let's create a new user for this purpose.
  3. You can run the x11 application without a window manager, but it may not work as expected. I recommend a window manager such as ratpoison, as it is lightweight and displays the application in full screen mode by default, giving you an experience similar to running an application on the host. See this article for some tips and tricks.
  4. You must install all dependencies required by the applications, but for appjail-x11(1) to work, you must install at least x11/xauth. x11/xrandr is only necessary to refresh the server, so when you resize Xephyr(1) using its -resizeable parameter, it works like an application running on your host, creating a better experience.
  5. Not only do you have to worry about the dependencies, but also about the necessary services.

create.sh:

#!/bin/sh

# [1]
BASEDIR=`dirname -- "$0"` || exit $?
BASEDIR=`realpath -- "${BASEDIR}"` || exit $?

# [2]
JAIL="${1:-badwolf}"

# [3]
appjail makejail \
    -j "${JAIL}" \
    -o x11 \
    -o copydir="${BASEDIR}/files" \
    -o file="/etc/rc.conf.local" \
    -o template="${BASEDIR}/template.conf" \
    -o virtualnet=":<random> default" \
    -o nat
  1. With this trick, we can run this script regardless of the path.
  2. Useful for creating multiple jails for different purposes.
  3. As mentioned, options that may change frequently are best set outside of the Makejail. Note that the x11 or tmpdir options from appjail-quick(1) can be used, but the x11 option only shares /tmp/.X11-unix and, by default, is mounted as read-only, while tmpdir mounts the entire /tmp directory of the host as read-write, which is not desirable in this case.

files/etc/rc.conf.local:

# [1]
clear_tmp_X="NO"
  1. If we mount the /tmp/.X11-unix directory as read-only, which is the default setting, this is not necessary, but there is no harm in making it a habit.

run.sh:

#!/bin/sh

BASEDIR=`dirname -- "$0"` || exit $?
BASEDIR=`realpath -- "${BASEDIR}"` || exit $?

JAIL="${1:-badwolf}"

# [1]
XEPHYR_ARGS="\
-resizeable \
+extension RANDR \
+extension RENDER \
+extension GLX \
+extension XVideo \
+extension DOUBLE-BUFFER \
+extension SECURITY \
+extension DAMAGE \
+extension X-Resource \
-extension \
XINERAMA \
+extension MIT-SHM \
-nolisten tcp"

# [2]
exec appjail x11 "${JAIL}" \
    exec_start="ratpoison" \
    exec_user="badwolf" \
    xephyr_user="${USER}" \ # [3]
    xephyr_args="${XEPHYR_ARGS}"
  1. Here we define the options used for both Xephyr(1) and Xserver(1).
  2. Now let's run the x11 application inside the jail. When started, this command reserves a display for your jail, so you don't need to specify or remember one.
  3. Please note that some default settings depend on environment variables that may change after running AppJail due to tools such as doas(1) or sudo(8), so you must explicitly pass the values you want or use options such as keepenv from doas.conf(5). And keep in mind that this option requires security/su-exec. See also Trusted Users.

template.conf:

exec.start: "/bin/sh /etc/rc"
exec.stop: "/bin/sh /etc/rc.shutdown jail"
mount.devfs
persist
exec.clean
securelevel: 3
sysvmsg: new
sysvsem: new
sysvshm: new

Console:

$ ./run.sh
[00:00:00] [ debug ] [badwolf] x11 parameters: exec_start=ratpoison exec_user=badwolf xephyr_user=user xephyr_args=-resizeable +extension RANDR +extension REND
ER +extension GLX +extension XVideo +extension DOUBLE-BUFFER +extension SECURITY +extension DAMAGE +extension X-Resource -extension XINERAMA +extension MIT-SHM
 -nolisten tcp
[00:00:00] [ debug ] [badwolf] Merging ':0' entry from '/home/user/.Xauthority' into '/usr/local/appjail/cache/tmp/.appjail/appjail.CPIVyFROCQ'
[00:00:00] [ debug ] [badwolf] Generating a new cookie ...
[00:00:00] [ debug ] [badwolf] Cookie to allow access to '1000' is '627483beab8bee4d49de7e0ba05ccdae'
[00:00:00] [ debug ] [badwolf] Allowing access to display '1000': "/usr/local/libexec/appjail/jexec/jexec" -l -U "badwolf" -- "badwolf" xauth add "localhost:10
00" MIT-MAGIC-COOKIE-1 "627483beab8bee4d49de7e0ba05ccdae"
[00:00:00] [ debug ] [badwolf] Xephyr will run as 'user'
[00:00:00] [ debug ] [badwolf] runas command is 'su-exec "user"'
[00:00:00] [ debug ] [badwolf] Changing ownership to the Xauthority file ...
[00:00:00] [ debug ] [badwolf] Starting Xephyr: env DISPLAY=:0 su-exec "user" Xephyr "-resizeable" "+extension" "RANDR" "+extension" "RENDER" "+extension" "GLX
" "+extension" "XVideo" "+extension" "DOUBLE-BUFFER" "+extension" "SECURITY" "+extension" "DAMAGE" "+extension" "X-Resource" "-extension" "XINERAMA" "+extensio
n" "MIT-SHM" "-nolisten" "tcp" -auth "/usr/local/appjail/cache/tmp/.appjail/appjail.CPIVyFROCQ" :1000
[00:00:00] [ debug ] [badwolf] Xephyr started (pid:71246)
[00:00:01] [ debug ] [badwolf] Starting xrandr ...
[00:00:01] [ debug ] [badwolf] xrandr started (pid:48781)
[00:00:01] [ debug ] [badwolf] Starting client: "/usr/local/libexec/appjail/jexec/jexec" -l -e DISPLAY=:1000 -U "badwolf" -- "badwolf" "ratpoison"
[00:00:01] [ debug ] [badwolf] Client started (pid:78239)
Running Badwolf version: 1.4.0
Buildtime WebKit version: 2.46.6
Runtime WebKit version: 2.46.6
webkit-web-extension directory set to: /data/.local/share/badwolf/webkit-web-extension
Bookmarks: No loadable file found at /data/.local/share/badwolf/bookmarks.xbel
...

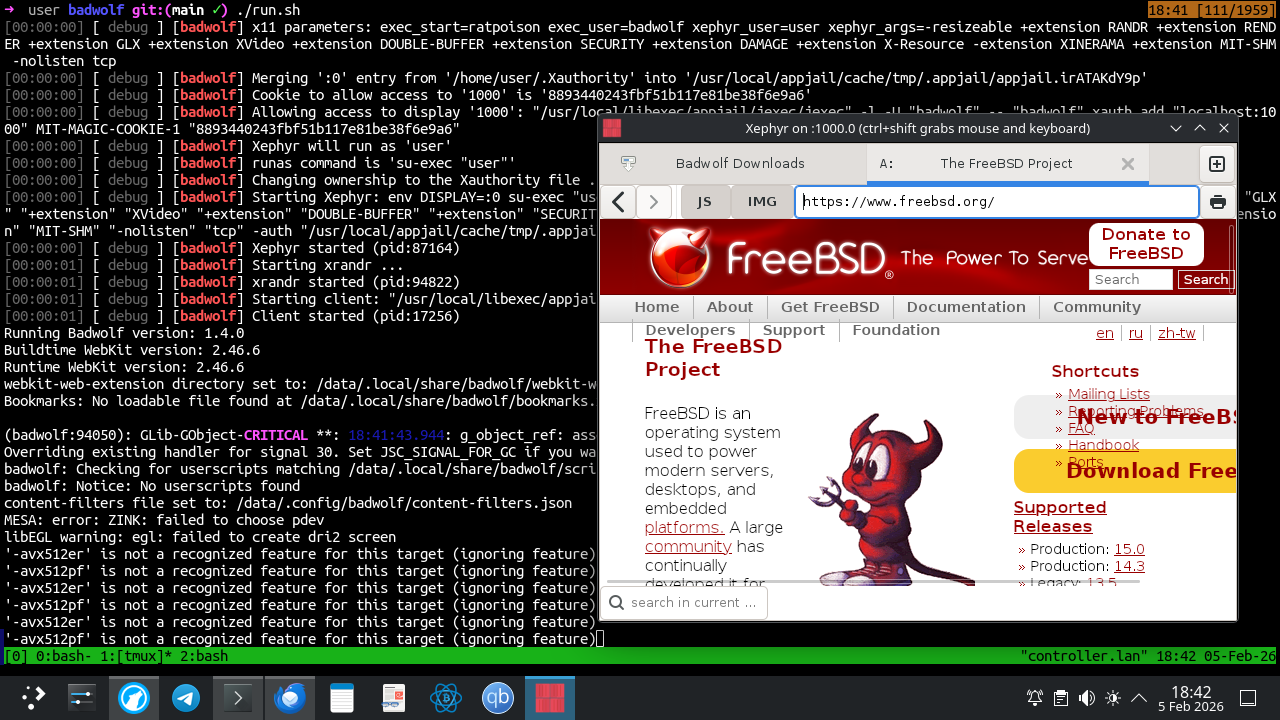

jailed badwolf

Warning

Remember that closing Xephyr(1)'s window may force your application to close, which may not be desirable. First close the application and then close the window manager, which (depending on the options you have used in xephyr_args) may or may not close Xephyr(1). For ratpoison(1), just press C-t k to close the current window and then C-t : to execute the quit command.

Clipboard

It may be desirable to share the clipboard between the host and the isolated x11 application, or between two isolated x11 applications. Please note that this may compromise the security of your system if care is not taken.

appjail-x11(1) does not implement a solution for this, but I have another tool called xclipsync that addresses this gap, which is already ported, so install it first and then continue.

First, note that appjail-x11(1) copies the Xauthority file you specify as a temporary file so as not to touch the real one, and then generates a random cookie to allow access to the X server created by Xephyr(1), and this happens every time you run it. We need to access the X server created by Xephyr(1), but we cannot use this random cookie effectively because it will become stale in the next session. To solve this, we need to generate a cookie in the Xauthority file we specify, but this creates a chicken-and-egg problem the first time, as we need the display assigned to the jail. There is an option in appjail-x11(1) called assign_only that solves this problem.

$ appjail x11 badwolf assign_only
[00:00:00] [ debug ] [badwolf] x11 parameters: assign_only
1000
$ xauth add localhost:1000 MIT-MAGIC-COOKIE-1 $(openssl rand -hex 16)
$ xauth list localhost:1000
controller.lan/unix:1000  MIT-MAGIC-COOKIE-1  8893440243fbf51b117e81be38f6e9a6

Now run the x11 application inside the jail as usual, and in another console, run xclipsync(1).

$ xclipsync -b :1000

Now, when you no longer need to share the clipboard, simply terminate the xclipsync(1) process. You can use shell jobs if you share the clipboard between multiple x11 applications.

Webcam, Audio, Printing, Microphone, ...

See Dynamic DEVFS Ruleset Management.
